DESCRIPTION

MOTOR TORQUE DEPENDING ON ELECTRONIC CONTROLLER:

With GS-200/GS-200Pro controller: 100 kg/cm

With RB-45 / RS-200 controller: 80 kg/cm

PLEASE NOTE: For maximum torque and best performance please select GS-200 or GS-200Pro.

INCLUDES:

3x ER-50 Classic retract with options selected

1x Controller selected

1x Cables and connector Set

1x Screw Set

HIGHLIGHTS

POWERFUL AND PRECISE

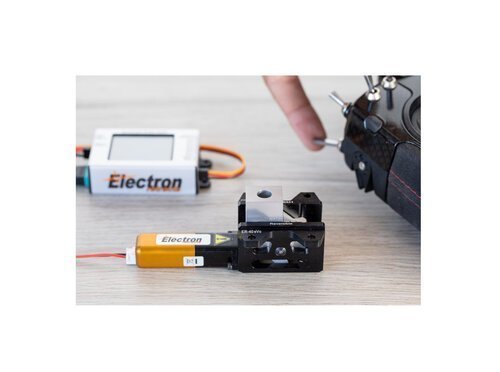

Pick up an ER50 Classic and even before operating it you can tell the power and precision for which it was designed.
With it’s main cage and parts being milled from solid 7075 T6 aviation grade aluminium, it is capable of working day in and day out from any kind of runway with models of up to 30kg

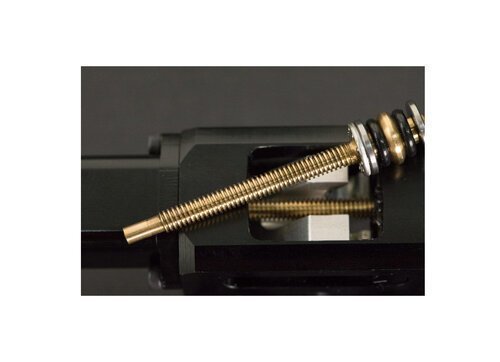

SQUARE SPINDLE FOR INCREASED SPEED AND TORQUE

Electron Retract’s ER-50 Classic now comes with a unique square thread spindle. This provides significantly increased torque, while also improving speed.

DESIGNED TO SIMPLY WORK

Retracts are usually installed and hidden away, and at Electron-Retracts we know that. That is why all our retracts have been designed to require little to no maintenance, so your time at the field can be used for flying and not fiddling.

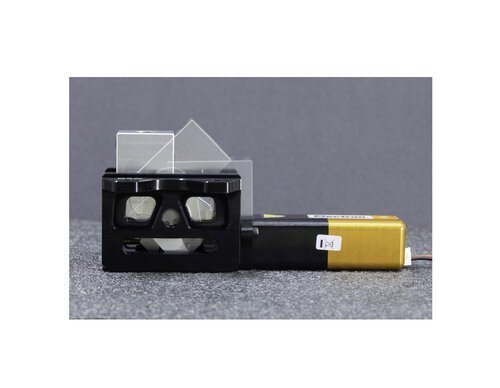

REVERSIBLE DESIGN

Depending on your specific model, it may need the retracts to fold back on themselves, or away from themselves. Thanks to our unique design, this can be achieved by simply removing the trunion and flipping it round. This procedure can be completed in minutes and does not affect the warranty.

HIGHLY CUSTOMISEABLE

Choose one of the pin hole sizes to perfectly match your desired struts and combine it with one of the different angled trunions to achieve the exact set you need.

SMOOTH & PRECISE TURN

The spindle system has two thrust bearings with internal shock absorbers
mounted on its head.

This gives the whole assembly a smooth and precise turn, and a cushion when it reaches the final position.

CHOICE OF STEERING SYSTEMS

Depending on the space available inside your model, you may be able to choose between any of our multiple steering systems, which range from integrating the steering servo to the leg (upright or inverted), a coupling system which disconnects when retracted or even the traditional pull-pull system.

TECHNICAL SPECIFICATIONS

Weight (single retract): 290g

Max. weight model: 30kg (66lb)

Cycle time at 8V: 3,5 sec

Voltage allowed: 7.4V (2SLIPO)

Torque (8V): With GS-200 / GS-200 Pro: 100 kg/cm

With RB-45 / RS-200 Pro: 80 kg/cm

Front Clamp version: Yes
